Created with Pixso. Fast Connector SC APC IL 0.3dB With Pusher Fiber Optic Fast Quick Connector For 3mm Round Ftth Drop Cable

Fast Connector SC APC IL 0.3dB With Pusher Fiber Optic Fast Quick Connector For 3mm Round Ftth Drop Cable

الاسم التجاري: YINGDA
رقم الطراز: ESC925T-P
الـ MOQ: 10000 قطعة
السعر: 0.19USD-0.4USD
وقت التسليم: 7 أيام عمل
شروط الدفع: T/T,Western Union
معلومات مفصلة
Place of Origin:
china
إصدار الشهادات:
ISO
الأسعار:
0.20-0.35USD
الطول:
53.5mm (بدون ذيل ناعم)
فقدان الإدراج:
<0.3dB average, max. <0.3 ديسيبل في المتوسط ​​، بحد أقصى. 0.5dB 0.5 دي
خسارة العائد:
> 50 ديسيبل
نوع الطويق:
ناقلة جنود مدرعة
قطع الغيار:
أداة إصلاح الطول ، دليل المستخدم
Applicable:
fiber to the home, FTTH
كابل قابل للتطبيق:
2.0*3.0 مم كابل إسقاط ، 0.9 مم ، 2.0 مم ، 3.0 مم مستدير
الادوات المحتاجة:
الساطور الليفي ، متجرد الكابلات ، القماش الكحولي ، ذو طيات ميلر
وقت العملية:
حوالي 15
تفاصيل التغليف:
10 قطعة / صندوق نفطة
القدرة على العرض:
1000000pcs شهريا
وصف المنتج

Fast Connector SC APC IL 0.3dB With Pusher Fiber Optic Fast Quick Connector For 3mm Round Ftth Drop Cable


Specification:


ESC925T-P Fast Connector Specification

Mode
SM

MM
Polish
UPC
APC
PC
Insertion Loss
Typical ≤0.3dB
Maximum ≤0.5dB
≤0.25dB
Return Loss
≥50dB
≥45dB
≥35dB
Interchangeability
≤0.2dB
Repeatability
≤0.1dB
Durability
≤0.2dB (1000 times mating)
Tensile Strengh
> 10kg
Temperature
≤0.2dB (-40+85 sustain 100 hours)
Humidity
≤0.2dB (+25+65 93 R.H.100 hours)



Feature:

  • Factory-installed fiber stub, no epoxy and polishing required, inside with index-matching gel
  • Product Length: 53.5mm(without soft tail)
  • Cable: Mainly Suitable for 3.0*2.0mm Drop Cable, Ф 3.0mm, Ф 2.0mm Round Cable, Compatible with 2.0*1.6mm Drop Cable, Ф 0.9mm Round Cable
  • Fiber: G657A1, G657A2, G657B3, Fiber Diameter 125μm, Coating Diameter 250μm & 900μm
  • Operating Temperature: -25℃~+75℃
  • Easy and fast installation, 30 seconds to learn install, 90 seconds to operate in the field
  • No need of polishing or adhesive, ceramic ferrule with embedded fiber stub is pre-polished
  • Fiber aligned in v-groove through the ceramic ferrule
  • Low-volatile reliable matching liquid preserved by side cover
  • Unique bell-shaped boot maintains the mini fiber bend radius


Application:


1.Used to open the FTTH fiber terminal end.
2.Fiber Optic Distribution Frame, Patch Panel, ONU
3.In the box, cabinet, such as wiring into the box.
4.Maintenance or emergency restoration of fiber network
5.The construction of the fiber end user access and maintenance.
6.Optical fiber access of mobile base station.
7.For FTTH Drop Cable

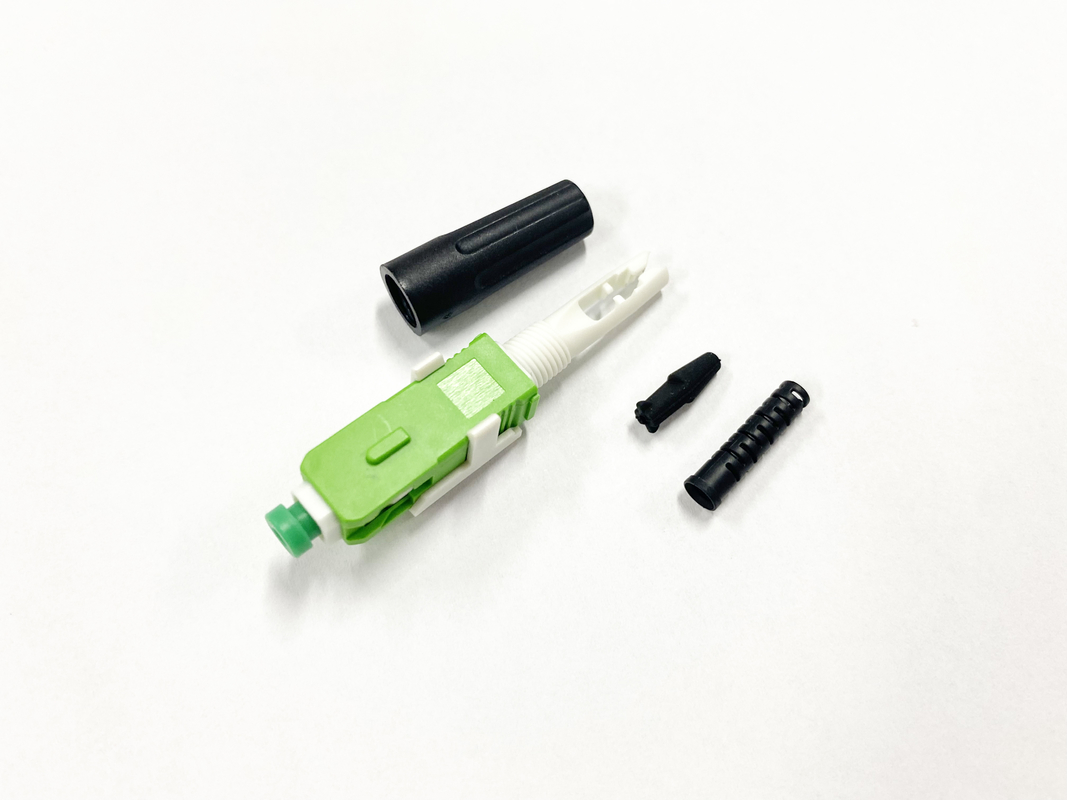

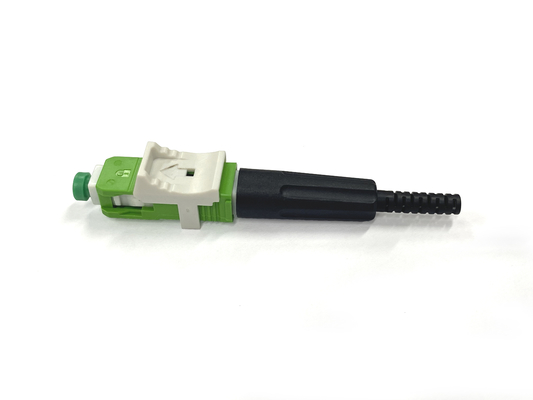

More detail pictures:

Fast Connector SC APC IL 0.3dB With Pusher Fiber Optic Fast Quick Connector For 3mm Round Ftth Drop Cable 0Fast Connector SC APC IL 0.3dB With Pusher Fiber Optic Fast Quick Connector For 3mm Round Ftth Drop Cable 1

Fast Connector SC APC IL 0.3dB With Pusher Fiber Optic Fast Quick Connector For 3mm Round Ftth Drop Cable 2Fast Connector SC APC IL 0.3dB With Pusher Fiber Optic Fast Quick Connector For 3mm Round Ftth Drop Cable 3
