| الاسم التجاري: | yingda |
| رقم الطراز: | YDPLC-LGX-208LU |
| الـ MOQ: | 1 قطعة |
| السعر: | 1.1USD-4.58USD |
| وقت التسليم: | 5 أيام |
| شروط الدفع: | / تي تي، ويسترن يونيون، مونيغرام، ل / c |

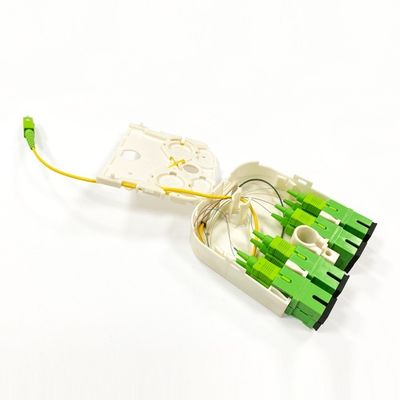

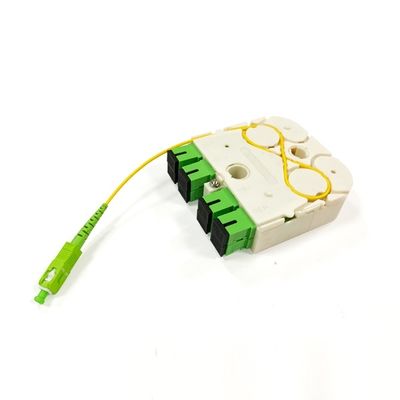

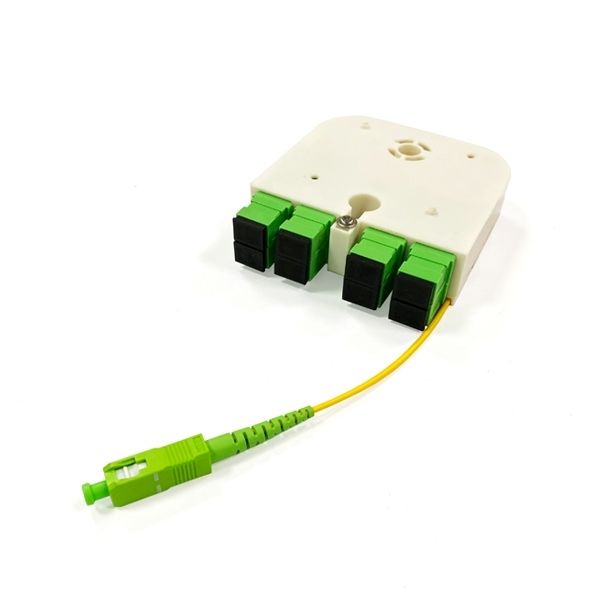

The LGX Optical Splitter is a high-performance fiber optic splitter specifically designed to meet the demanding requirements of the Russian market.
Engineered to operate in extreme conditions, this splitter can withstand temperatures as low as -50°C, making it ideal for use in cold winter.
A 1×8 split ratio, this splitter has a customizable shell, with stainless steel nuts for added durability and reliability.
The design allows for the direct input of patch cords, reducing construction costs and simplifying installation. Its superior performance, compact design, and adaptability make it a versatile solution for a wide range of fiber optic network applications.
Specification:
Product details:
Direct patch cord Input design:
Input side with 2.0mm yellow cable, allows patch cords to be directly connected to the splitter, eliminating the need for additional components. Reduces construction and material costs, simplifying installation and maintenance.
Two models for option:
The 1X4 and 1X8 with SC/APC mini cassette PLC splitters are available. The splitter performance as below:
| Specification | 1×4 Splitter | 1×8 Splitter |
|---|---|---|
| Insertion Loss (IL) | ≤7.7dB (With Connector) / ≤7.5dB (Without Connector) | ≤10.7dB (With Connector) / ≤10.5dB (Without Connector) |
| Polarization Dependent Loss (PDL) | ≤0.2dB | ≤0.2dB |
| Uniformity | ≤0.8dB | ≤0.8dB |
| Directivity | ≥55dB | ≥55dB |
| Return Loss (RL) | ≥55dB | ≥55dB |
Application:
1· FTTx
2· Cable television (CATV)
3· Local area networks (LAN)
4· Test equipment
5· Passive optical networks(PON)
YINGDA 'S PLC Splitter production line:
1.Advanced production and testing equipment
فيديو
فيديو
|
| الاسم التجاري: | yingda |
| رقم الطراز: | YDPLC-LGX-208LU |
| الـ MOQ: | 1 قطعة |
| السعر: | 1.1USD-4.58USD |
| تفاصيل التعبئة: | 1 قطعة/كيس من البلاستيك ، 40 قطعة/صندوق كرتوني |
| شروط الدفع: | / تي تي، ويسترن يونيون، مونيغرام، ل / c |
The LGX Optical Splitter is a high-performance fiber optic splitter specifically designed to meet the demanding requirements of the Russian market.
Engineered to operate in extreme conditions, this splitter can withstand temperatures as low as -50°C, making it ideal for use in cold winter.
A 1×8 split ratio, this splitter has a customizable shell, with stainless steel nuts for added durability and reliability.
The design allows for the direct input of patch cords, reducing construction costs and simplifying installation. Its superior performance, compact design, and adaptability make it a versatile solution for a wide range of fiber optic network applications.
Specification:
Product details:
Direct patch cord Input design:
Input side with 2.0mm yellow cable, allows patch cords to be directly connected to the splitter, eliminating the need for additional components. Reduces construction and material costs, simplifying installation and maintenance.
Two models for option:
The 1X4 and 1X8 with SC/APC mini cassette PLC splitters are available. The splitter performance as below:
| Specification | 1×4 Splitter | 1×8 Splitter |
|---|---|---|
| Insertion Loss (IL) | ≤7.7dB (With Connector) / ≤7.5dB (Without Connector) | ≤10.7dB (With Connector) / ≤10.5dB (Without Connector) |
| Polarization Dependent Loss (PDL) | ≤0.2dB | ≤0.2dB |
| Uniformity | ≤0.8dB | ≤0.8dB |
| Directivity | ≥55dB | ≥55dB |
| Return Loss (RL) | ≥55dB | ≥55dB |
Application:
1· FTTx
2· Cable television (CATV)
3· Local area networks (LAN)
4· Test equipment
5· Passive optical networks(PON)
YINGDA 'S PLC Splitter production line:
1.Advanced production and testing equipment
