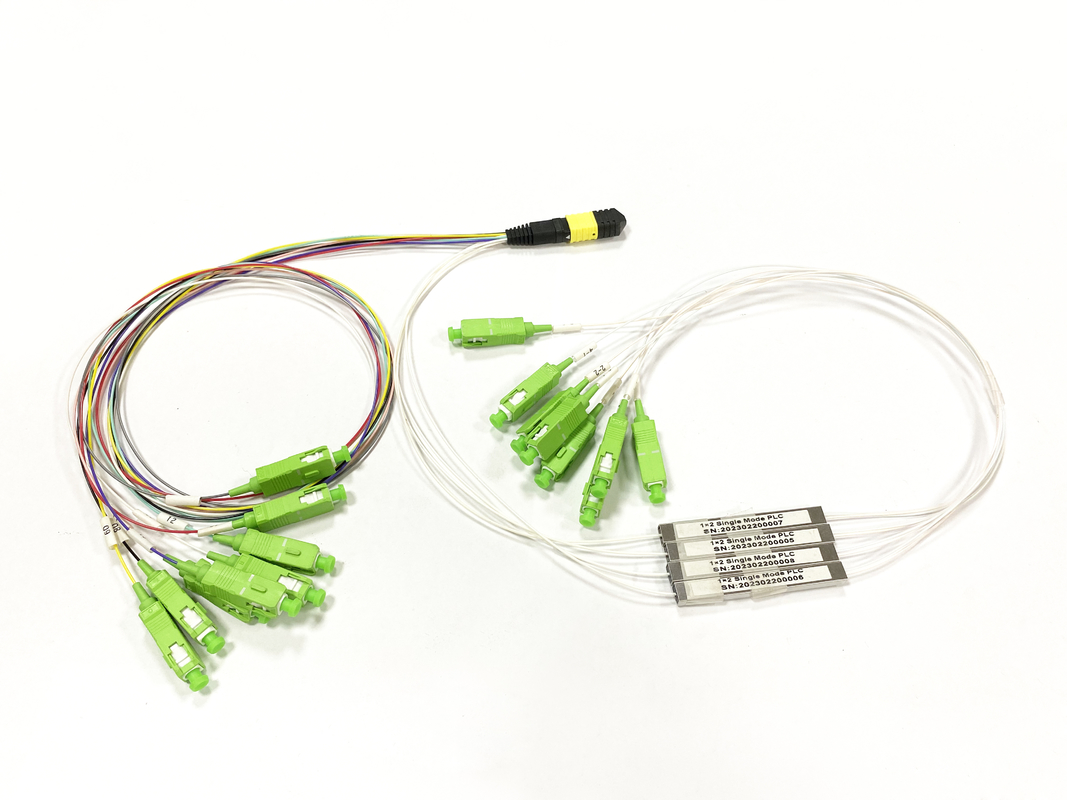

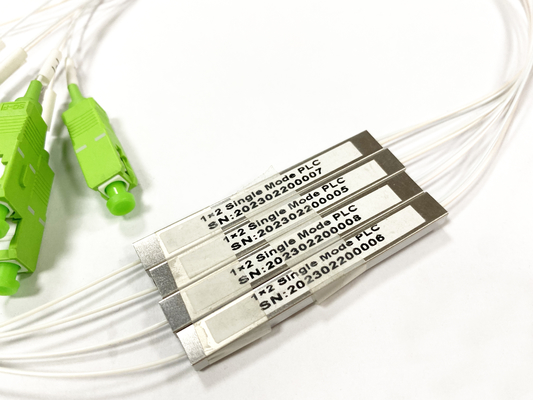

16Cores MPO Elite PLC Splitter 8cores MPO+ 4pcs 1*2 Sca Coupler Splitter Hybrid Splitter For Data Center Service room
Fiber Optic splitter Features
• Low insertion loss and high return loss
• PDL automatic screening system(Ultra low PDL is available)
• High reliability and stability
• Connector can up to grade B
• 100% 3D tested by Daisi and Sumix
• High-low temperature cycle test
• 100% test before delivery
• FTTH Cabling solution could be design
1x9 Splitter Specification
| Split ratio (%) | 85/15 | 80/20 | 70/30 | 60/40 | |
| Operating wavelength (nm) | 1260-1650 | ||||
| Fiber type | G657A or customized | ||||
| IL max(dB) | channel 1 | 1.6 | 1.8 | 2.1 | 2.7 |
| channel 2-9 | 21.0 | 18.6 | 16.5 | 15.1 | |
| IL uni(dB) | Channel 2-9 | 1.8 | 1.8 | 1.8 | 1.8 |
| Return loss (dB) | ≥55 | ||||
| Directivity (dB) | ≥55 | ||||
| PDL (max.) | 0.3 | 0.3 | 0.3 | 0.3 | |
| Uniformity (max.) | 0.8 | 0.8 | 0.8 | 0.8 | |
| Wavelength dependent loss (dB) | ≤0.3 | ||||
| TDL (max.) | 0.5 | ||||
| Operating temperature | -40 ~+85 | ||||
| Storage temperature | -40 ~+85 | ||||
| Dimension (mm) / LXWXH | Bare fiber | 60x7x4 | 60x7x4 | 60x7x4 | 60x7x4 |
| 900um | 60x7x4 | 60x7x4 | 60x7x4 | 60x7x4 | |
| ABS box | 120x80x18 | 120x80x18 | 120x80x18 | 120x80x18 | |
Note:
1. Specified without connectors
2. Add an additional 0.2dB loss including connectors
Unbalanced optical splitter rate Detail information:
1x9 unbalanced splitter use the same steel tube 60*7*4mm as 1x8 splitter, input 1, output 9= 4*2+1pcs fiber array.

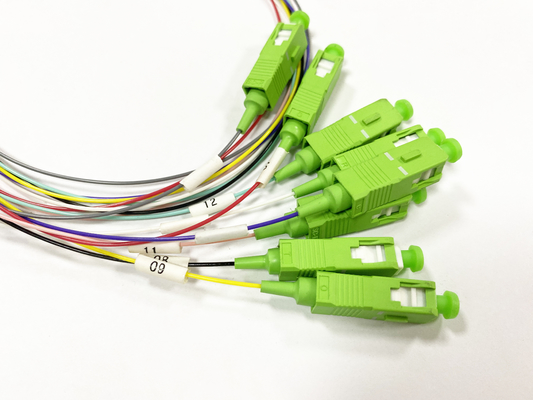

Fiber color is colorful, loose tube 900um can be customized, like blue, orange, green ,brown, gray, white, red, black, etc, with number marks to distinguish.
In order to distinguish the split ration, use different color like blue to mark, this special chip 1x9 ensure unbalanced split ratio not equal types, which can meet special requirements and flexible optical application, and is widely used in 5G FTTR networks;
Output of the optical splitter can divide into 70/30 80/20 60/40 or 85/15% 4types;
All types of optical connectors can be used, like SC FC LC ST; Polish method: UPC, APC；
Input ouput pigtails length: 0.5meter, 1meter, 1.5meter, etc
GPON Splitter Application
If buy 1:9 optical splitter blockless type only, will pack in blister box with test report. The tube, connectors or cables will be fixed in place in blister box with good protection.
Pre-terminated with connectors and assembly in optical nap box or distribution box is acceptable at factory before delivery.
Frequently work with CTO fiber box
Fiber box CTO 10cores Fiber box CTO 12cores
