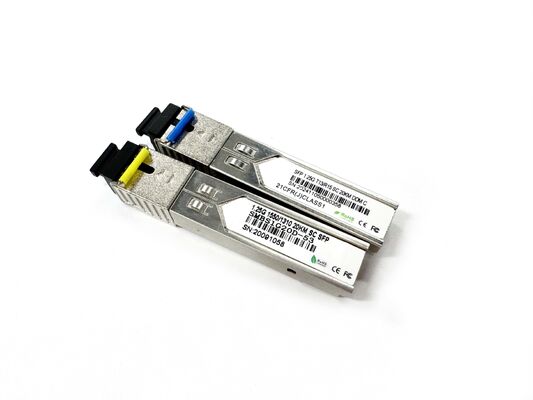

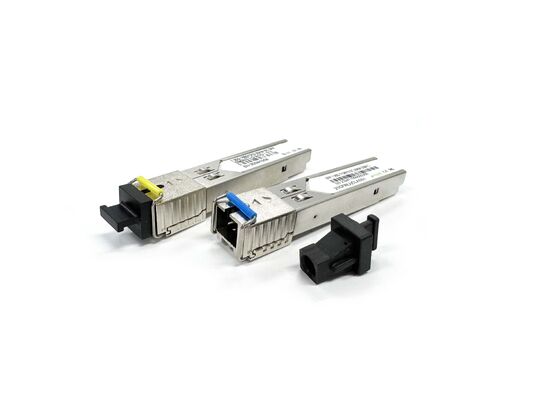

Fibre Optic Module Price SFP-1.25G-LX 1.25G 20KM SC Dual SFP 1310nm 1550nm 20KM SFP+ for Telecom Data Center FTTX
The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps and 10km transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Absolute Maximum Ratings
Table 1 - Absolute Maximum Ratings
|
Parameter |
Symbol |
Min |
Max |
Unit |
|
Supply Voltage |
Vcc |
-0.5 |
4.5 |
V |
|
Storage Temperature |
Ts |
-40 |
+85 |
°C |
|
Operating Humidity |
- |
5 |
85 |
% |
Recommended Operating Conditions
Table 2 - Recommended Operating Conditions
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
Operating Case Temperature |
Tc |
0 |
|
+70 |
°C |
|
Power Supply Voltage |
Vcc |
3.13 |
3.3 |
3.47 |
V |
|
Power Supply Current |
Icc |
|
|
300 |
mA |
|
Data Rate |
|
|
1.25 |
|
Gbps |
Optical and Electrical Characteristics
(FP and PIN, 1310nm, 5km Reach) Table 3 - Optical and Electrical Characteristics
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Notes |
||
|
Transmitter |
||||||||
|
Centre Wavelength |
λc |
1260 |
1310 |
1360 |
nm |
|
||
|
Spectral Width (RMS) |
∆λ |
|
|
9 |
nm |
|
||
|
Average Output Power |
Pout |
-9 |
|
-3 |
dBm |
1 |
||
|
Extinction Ratio |
ER |
9 |
|
|
dB |
|
||
|
Optical Rise/Fall Time (20%~80%) |
tr/tf |
|
|
0.16 |
ns |
|
||
|
Data Input Swing Differential |
VIN |
400 |
|
1800 |
mV |
2 |
||
|
Input Differential Impedance |
ZIN |
90 |
100 |
110 |
Ω |
|
||
|
TX Disable |
Disable |
|
2.0 |
|
Vcc |
V |
|
|
|
Enable |
|
0 |
|
0.8 |
V |
|
||
|
TX Fault |
Fault |
|
2.0 |
|
Vcc |
V |
|
|
|
Normal |
|
0 |
|
0.8 |
V |
|
||
|
Receiver |
||||||||
|
Centre Wavelength |
λc |
1530 |
1550 |
1570 |
nm |
|
||
|
Receiver Sensitivity |
|
|
|
-24 |
dBm |
3 |
||
|
Receiver Overload |
|
0 |
|
|
dBm |
3 |
||
|
LOS De-Assert |
LOSD |
|
|
-28 |
dBm |
|
||
|
LOS Assert |
LOSA |
-30 |
|
|
dBm |
|
||
|
LOS Hysteresis |
|
1 |
|
4 |
dB |
|
||
|
Data Output Swing Differential |
Vout |
400 |
|
1800 |
mV |
4 |
||
|
LOS |
High |
2.0 |
|
Vcc |
V |
|
||
|
Low |
|
|
0.8 |
V |
|
|||
Mechanical Dimensions
Wide Compatibility
Compatible with various brands of equipment,such as switches/routers/servers/transceivers or other devices with SFP interfaces.
Applications
Ordering information
|
Part Number |
Product Description |
|
YH-S1213-L3305C |
1310nm, 1.25Gbps, LC,5km, 0°C~+70°C |
|
YH-S1213-L3305T |
1310nm, 1.25Gbps, LC,5km, -40°C~+85°C, |
